Printable add-ons

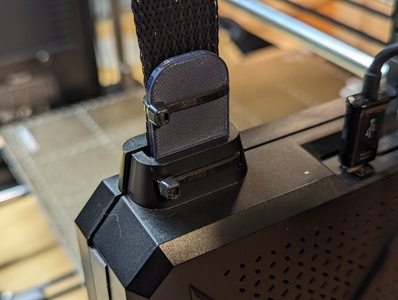

Extruder cable support

The extruder cable may sag during printing. To solve this, a small support can be added where the extruder cable enters the mainboard box.

Hardware

2 small zip ties are needed for this model.

Sovol SV06 Plus mainboard extruder cable support (remix) by me or Sovol SV06 Plus Print Head Cable Support by itsrouteburn

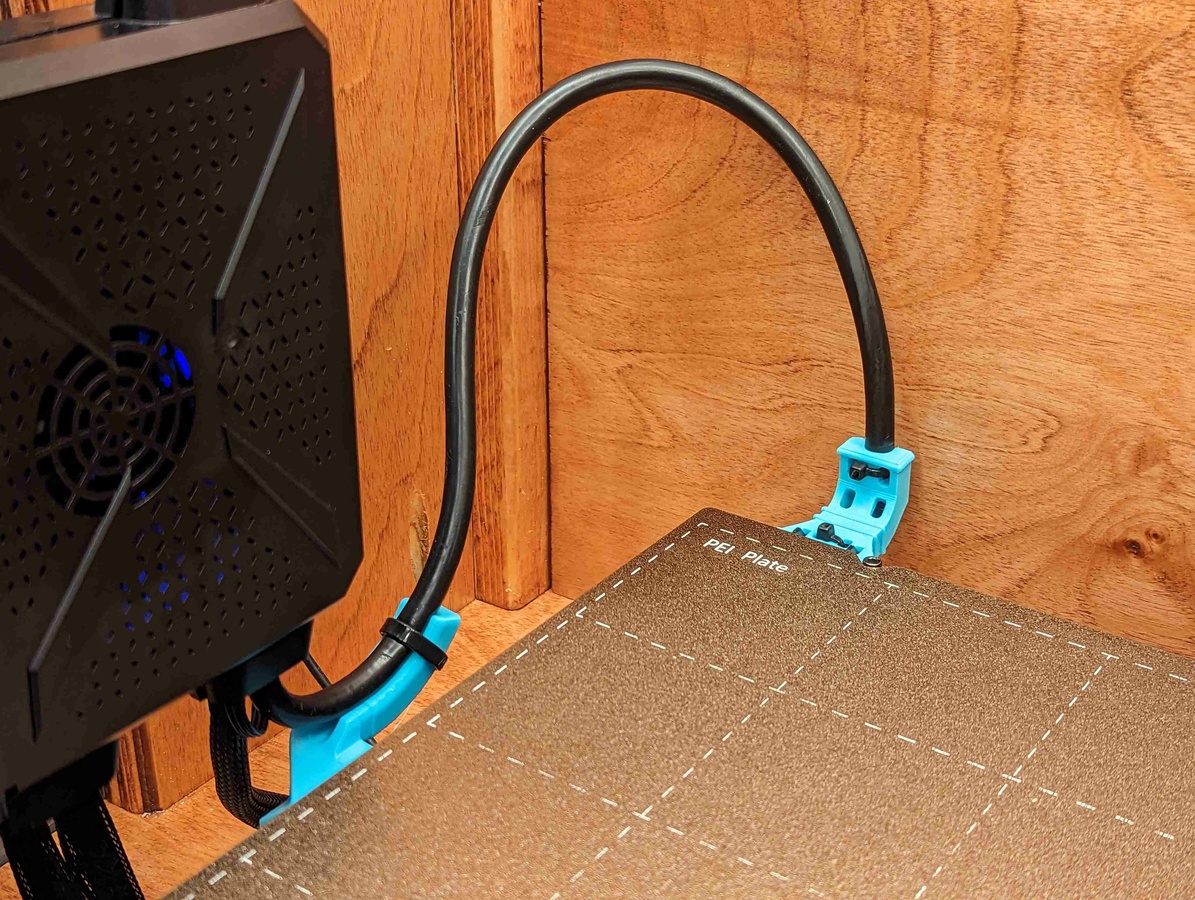

Heat bed cable support

The heat bed cable on the Sovol SV06 Plus normally hangs behind the printer frame. This two-piece model adds support to the heat bed cable to reduce strain and help it fit into a smaller space.

Hardware

3 small zip ties are needed for this model.

Sovol SV06 Plus Heat Bed Cable Support Bundle for tight spaces by me

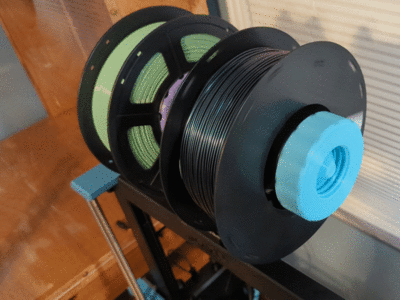

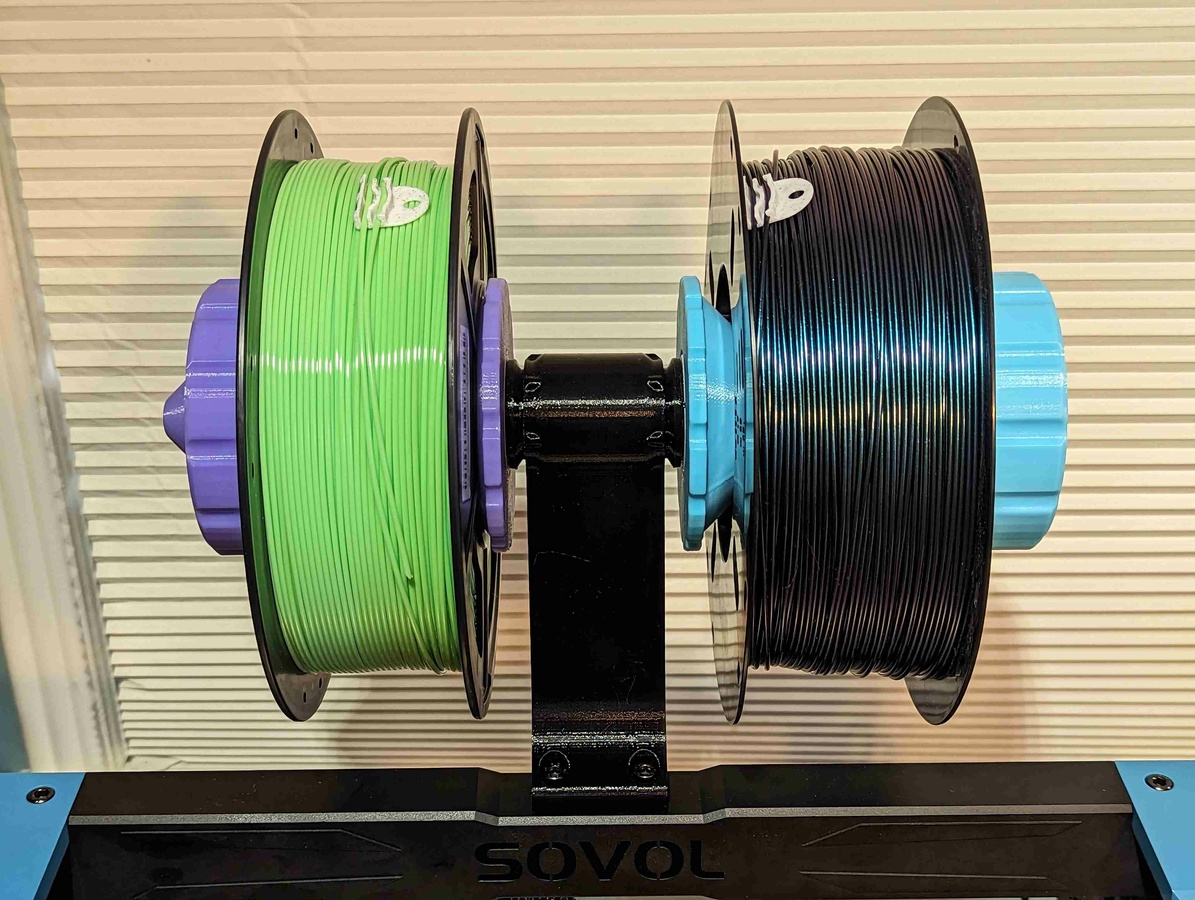

Dual spools with better grip

These are two models that pair well to make changing and using filament spools easier on the SV06 Plus. The dual spool holder makes it easy to queue up a second spool when changing filaments. The improved spool holder model grips filament spools by the center for smoother rotation compared to the stock spool holder.

Note

These models are not compatible with the default filament runout sensor mount on the SV06 Plus. However, the filament runout sensor can be relocated to the extruder using another model or omitted entirely if desired.

I find I don't use the sensor most of the time. Usually I am printing small models where it's obvious there is enough filament on the spool. The SV06 Plus prints normally with the filament runout sensor unplugged.

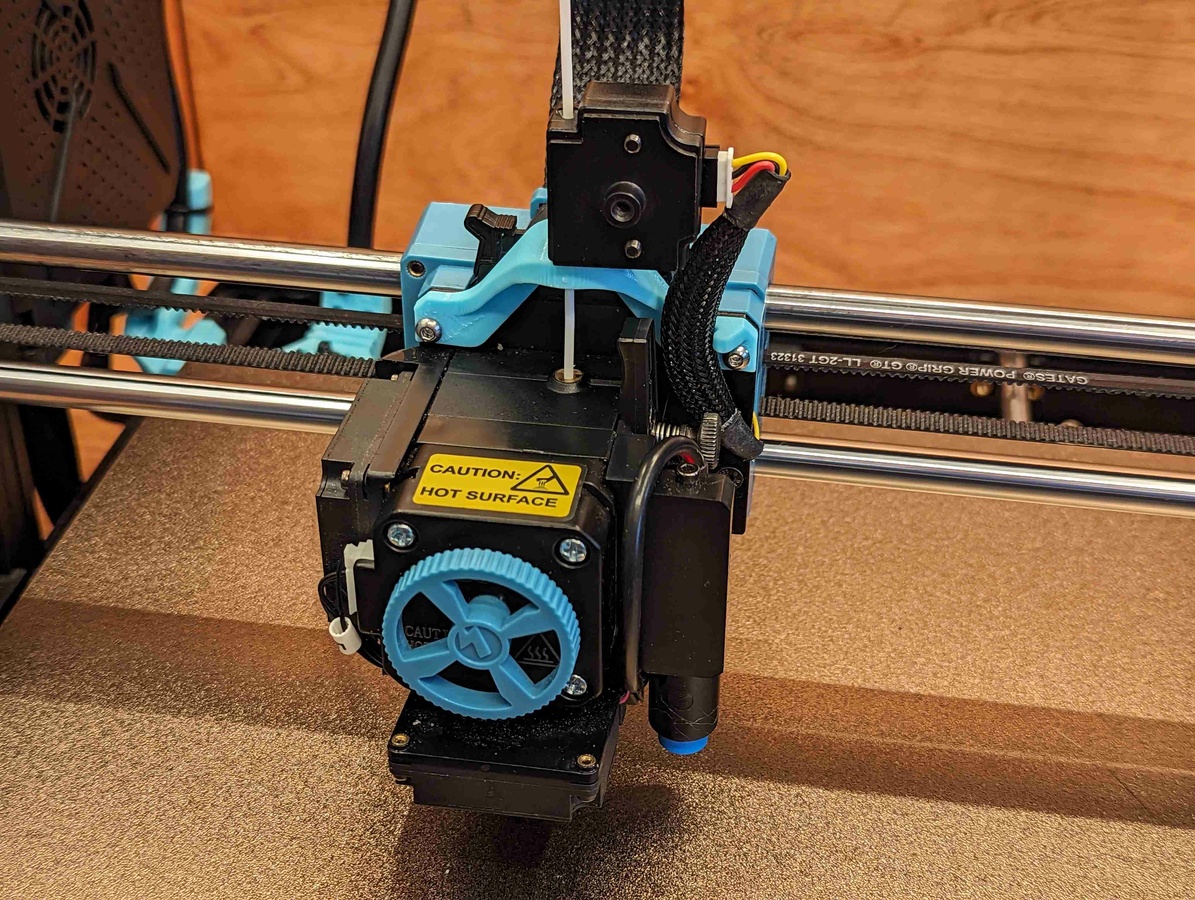

Filament runout sensor extruder mount

The filament runout sensor can be mounted on the extruder just over the filament inlet. This reduces the amount of wasted filament at the end of a spool. With some minor wiring adjustment, the sensor can also be connected right to the side port on the extruder so the separate wiring harness to the mainboard box is not needed.

Hardware

2 M3x10 screws are needed for this model.

Filament runout sensor extruder mount for Sovol SV06 Plus by me
